hearts-suit
SITS Fav SEAT

Graco True3Fit LX

Seat is good for you if:
  • You have a vehicle with non-removable headrests.
  • You have a small backseat.
  • You need to fit 3 across.
Use caution if you:
  • You want to skip an infant seat.
  • You want this to be the last seat your child ever needs.
Stand-out features:
  • Anti-rebound Bar
  • Forward-facing lock-off
  • It’s very compact rear-facing.
Buy Now:
SITS checks manufacturers and retailers daily to ensure these are the lowest prices available for these models.
Graco
True3Fit LX
Anti-Rebound Bar
Buy Now
229.00
Graco
True3Fit LX
Buy Now
229.00

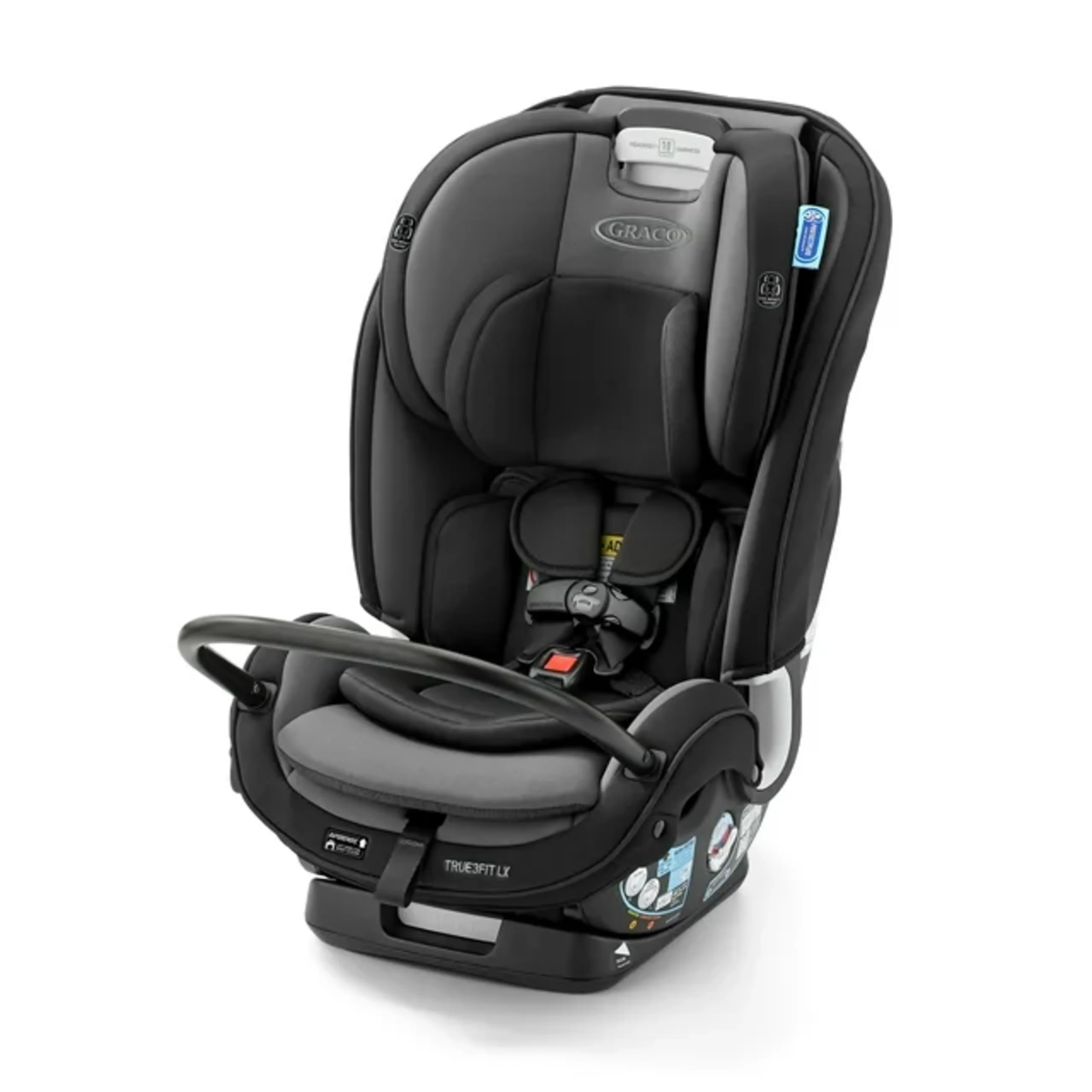

Our Review of the

Graco True3Fit LX

Age

Our recommendation: From 6 months until the seat is outgrown (average 7-8 years old)

Type

A convertible car seat that can be used rear-facing and forward-facing

When

After the baby can sit unassisted or after the infant seat has been outgrown

Buy Now:
SITS checks manufacturers and retailers daily to ensure these are the lowest prices available for these models.
Graco
True3Fit LX
Anti-Rebound Bar
Buy Now
229.00
Graco
True3Fit LX
Buy Now
229.00
Michelle sitting in a chair reading a book.

Stand Out Features of this Car Seat

Anti-rebound Bar

The Graco True3Fit LX comes in a Walmart-exclusive version that has an anti-rebound bar (ARB), an added safety feature that can reduce the secondary movement of the car seat, called rebound, during a crash. When a crash occurs, the car seat will move forward, towards the front of the vehicle, and rotate downward. And as we all know from high school physics, every action has an equal and opposite reaction — so after that initial movement, the car seat will rebound, or “bounce back” towards the backrest of the vehicle seat. The ARB minimizes this bounce-back effect, helping limit the car seat movement and your child inside it! ARBs may also limit the side-to-side rotation of the car seat in a side-impact collision. Overall, they’re a great feature to have on a rear-facing car seat!

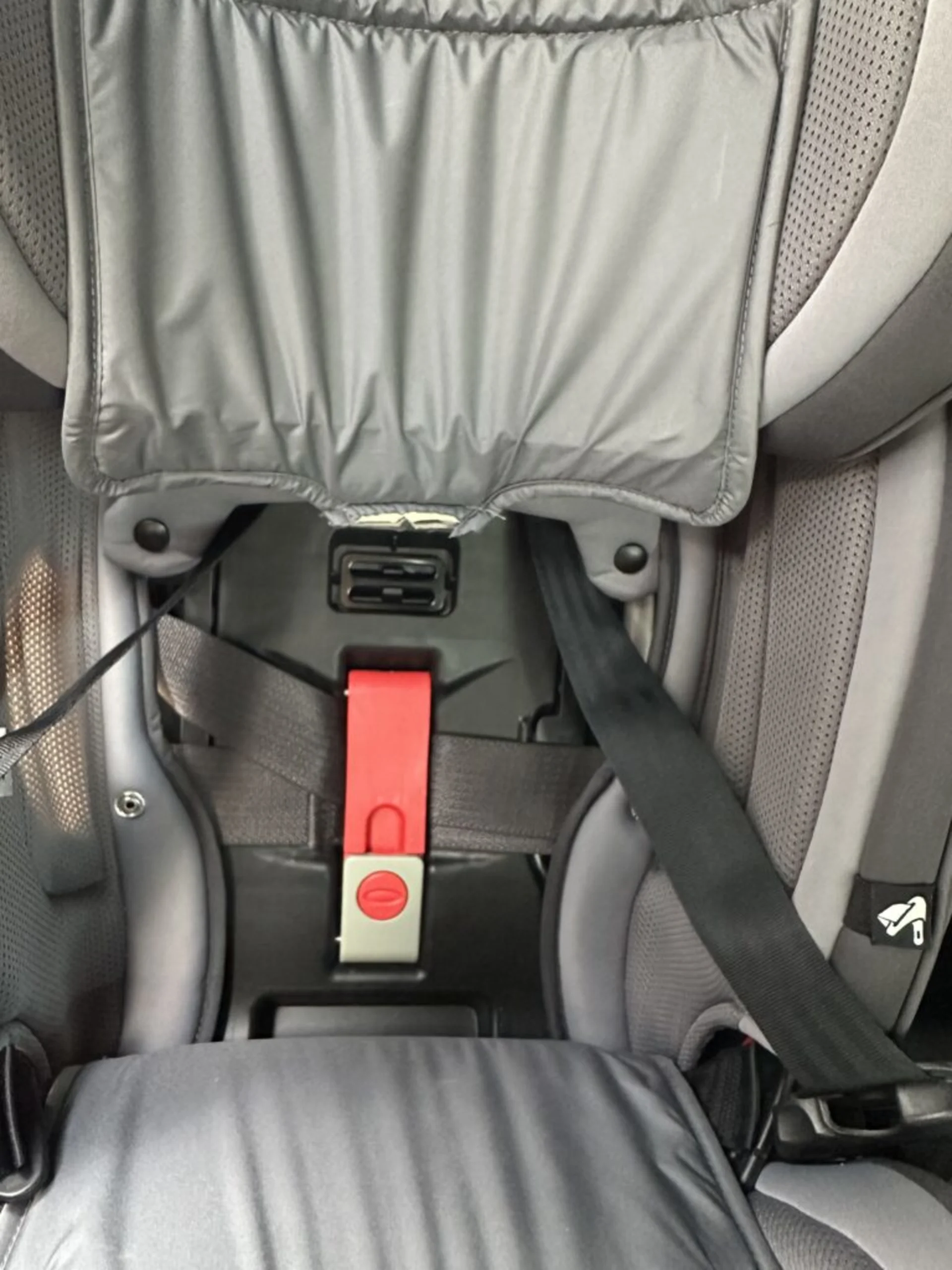

Forward-facing lock-off

In the forward-facing mode, the Graco True3Fit LX offers a seat belt lock-off feature. In fact, this feature simplifies the installation process, ensuring a secure and tight fit in various car models. It’s especially handy when dealing with center seating positions or tight spaces, providing added peace of mind for parents concerned about installation safety.

It’s very compact rear-facing.

It doesn’t take up a lot of space in the rear-facing mode. We’ve found that it fits well in a lot of smaller vehicles and behind taller parents.

Seat is good for you if

hearts-suit

You have a vehicle with non-removable headrests.

We’ve found that this seat tends to fit well in most vehicles, even ones that have non-removable headrests.

hearts-suit

You have a small backseat.

This seat is fairly compact rear-facing, so it can be a good option for smaller vehicles or to go behind tall passengers.

hearts-suit

You need to fit 3 across.

If your goal is to fit three car seats side by side in your vehicle, the Graco True3Fit LX becomes a top contender. Measuring just 16.7 inches in width, it ranks among the narrowest car seats available in the market today. This makes it an ideal choice for families facing the challenge of accommodating multiple car seats in their back seat. The forward-facing mode has a seat belt lock-off, which can be helpful to get a tight installation in some tight center seating positions. Whether you have triplets, three kids of varying ages, or simply need to make the most of your vehicle’s limited space, the True3Fit LX provides a practical and space-efficient solution.

hearts-suit

Use caution if

c-warning

You want to skip an infant seat.

While the Graco True3Fit LX offers a plethora of benefits, it’s important to exercise caution if you intend to skip using an infant car seat. We recommend waiting until your child can sit unassisted before transitioning to this seat. The True3Fit LX, even in its most reclined position, may not provide the necessary support and comfort for a newborn due to its slightly more upright orientation.

c-warning

You want this to be the last seat your child ever needs.

While the high-back booster mode has 57″/100-pound limits, there is no child that will fit at either of those limits. The harness mode will last about a year after the harness mode is outgrown as the highest belt guide position is about an inch higher than the harness. You will need another booster once your child outgrows this seat.

c-warning

Quirks to be aware of

c-question

c-question

c-question

Child Fit Information

Installation Information

airplane

Airplane Use

The Graco True3Fit LX is an FAA-approved car seat. Just get a travel cart to maneuver through the airport! Because it can be very compact in rear-facing mode, it will fit in that direction on most airplane seats. It is narrow as well, so you probably won’t even need to put the airplane armrests up to fit it!

If you are traveling internationally, you may be able to get away with installing with the lower anchors if the child is under 45 pounds and if the vehicles you end up in have lower anchors. But we would recommend contacting Graco for a free locking clip in case you need to do a rear-facing seat belt installation since most vehicles outside of the US and Canada will not have locking seat belts. For help on how to install a car seat with a locking clip, check out our video here. The forward-facing installation does have a seat belt lock-off. So no locking clip is needed when the seat is being used in that mode internationally. For help with all things airplane travel and car seats, check out our Wheels Up Course and private Facebook group.

Videos

This carseat does not have any videos yet.

SITS Bottom Line

In conclusion, the Graco True3Fit LX stands as an exceptional choice for families seeking a narrow and space-efficient car seat solution. Its ability to accommodate three car seats across and its compatibility with vehicles featuring non-removable headrests make it a versatile and practical option. Additionally, the forward-facing lock-off mechanism and removable cupholders enhance the user experience, ensuring a secure installation and added convenience.

Buy Now:
SITS checks manufacturers and retailers daily to ensure these are the lowest prices available for these models.
Graco
True3Fit LX
Anti-Rebound Bar
Buy Now
229.00
Graco
True3Fit LX
Buy Now
229.00

Similar Car Seats

SlimFit LX 3-in-1
Version
Graco
0
% OFF
hearts-suit
Safe in the Seat textmark in black letters

Notable differences:

Rapid Remove cover, not slim, no forward-facing lock-off, cupholders are also required
SlimFit
Version
Graco
30
% OFF
hearts-suit
Safe in the Seat textmark in black letters

Notable differences:

not slim, no forward-facing lock-off, no Rapid Remove cover, cupholders are required
Slimfit3 LX 3-in-1
Version
Graco
0
% OFF
hearts-suit
Safe in the Seat textmark in black letters

Notable differences:

16.7" wide, removable cup holders, forward-facing lock-off, Rapid Remove Cover

Specifications

Graco

True3Fit LX

Product Information

Weight: 18lbs

Width: 16.7"

Highest Harness Height: 17.75"

Rear Facing Limits

Height: 49"

Weight: 5-40lbs

Head Height Rules: at least 1″ below the top of the headrest adjustment handle

Lower Anchor Connectors Weight Limit: 40 lbs

Forward-Facing Limits

Height: 49"

Weight: 22-65lbs

Head Height Rules: ears must be below the top of the headrest

Lower Anchor Connectors Weight Limit: 45lbs

No Back Booster Limits

Highest Belt Guide Settings

19.5"

High Back Booster Limits

Height: 43-57"

Weight: 40-100lbs

Head Height Rules: ears must be below the top of the headrest

Other Important Details

Newborn Fit

not recommended; recline is not suitable for a newborn

Expiration Limit

10 years

Crash Replacement Policy

replace after any crash

Harness

no-rethread

Lock-off

forward-facing only

Vehicle Seat Protectors

This brand allows a mat or thin towel or blanket

Ford Inflatable Seat Belts

Bypass the seat belt lock-off when using this seat in forward-facing mode
